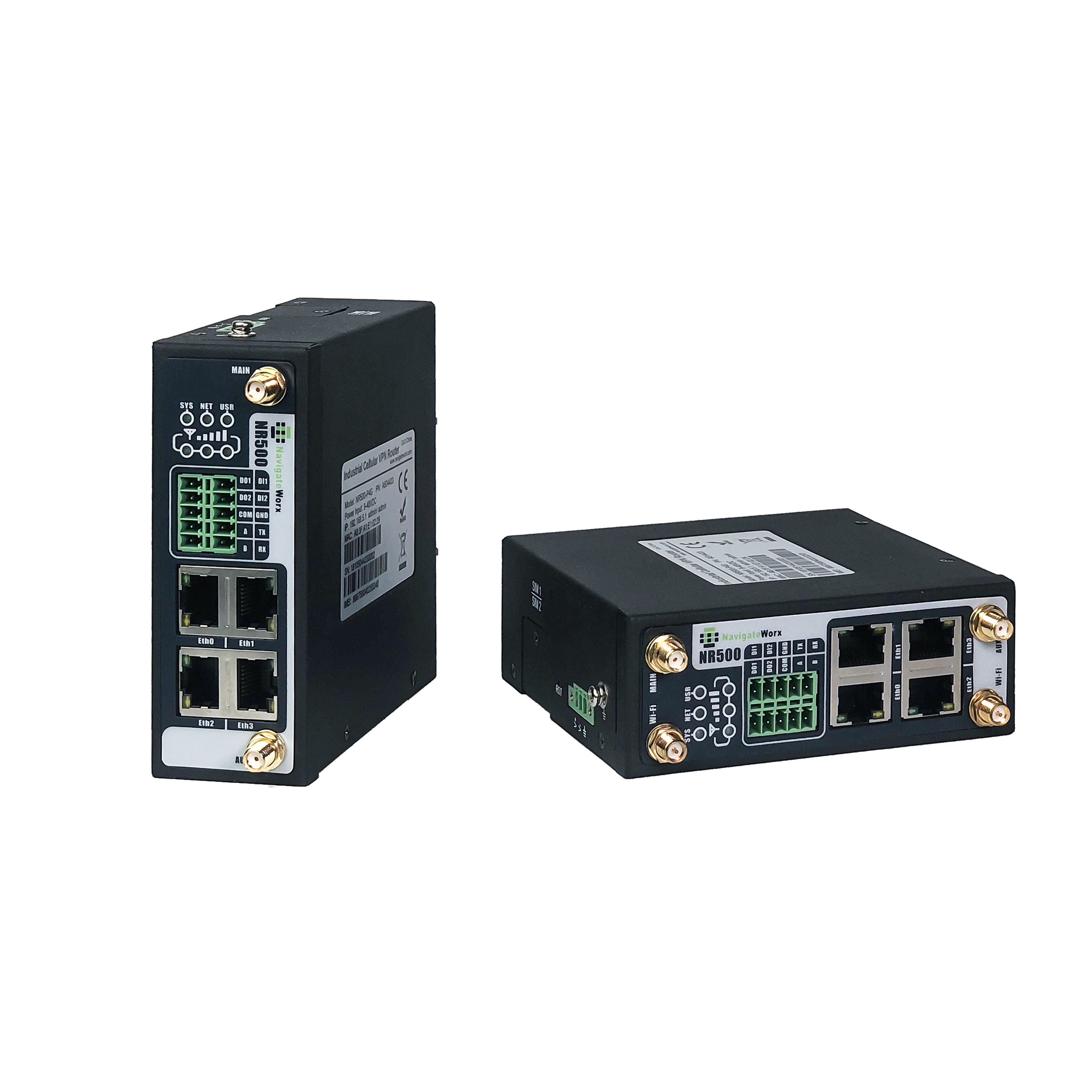

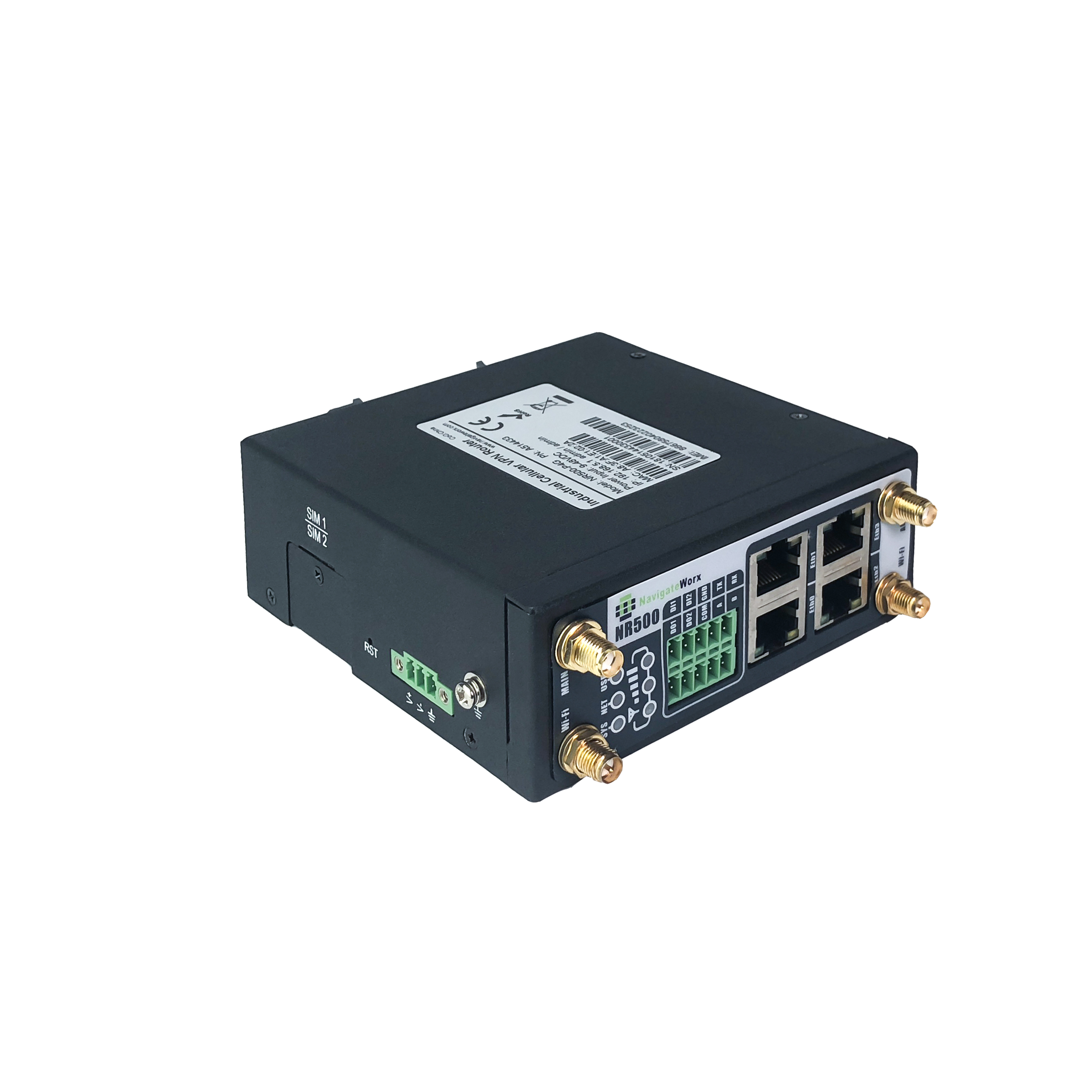

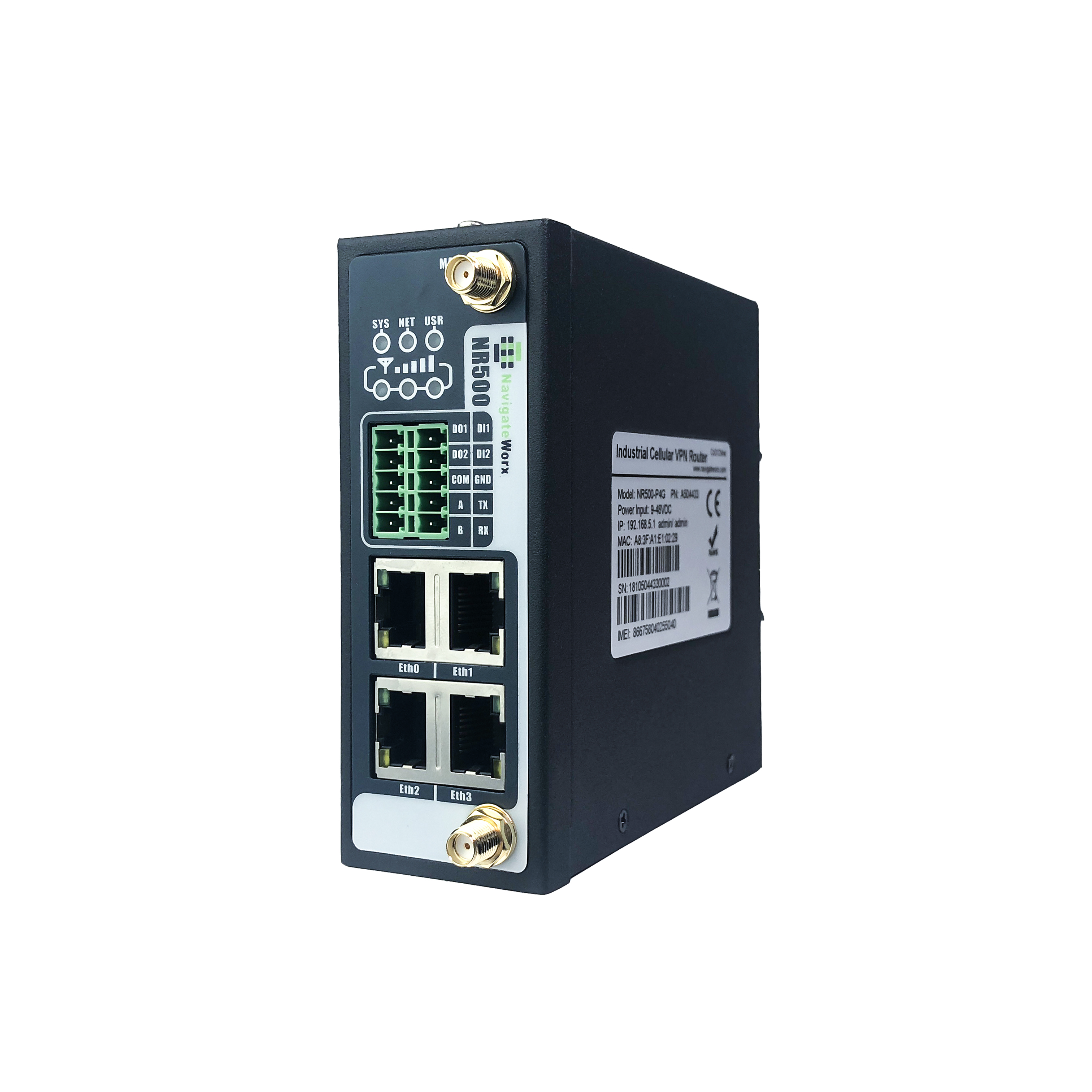

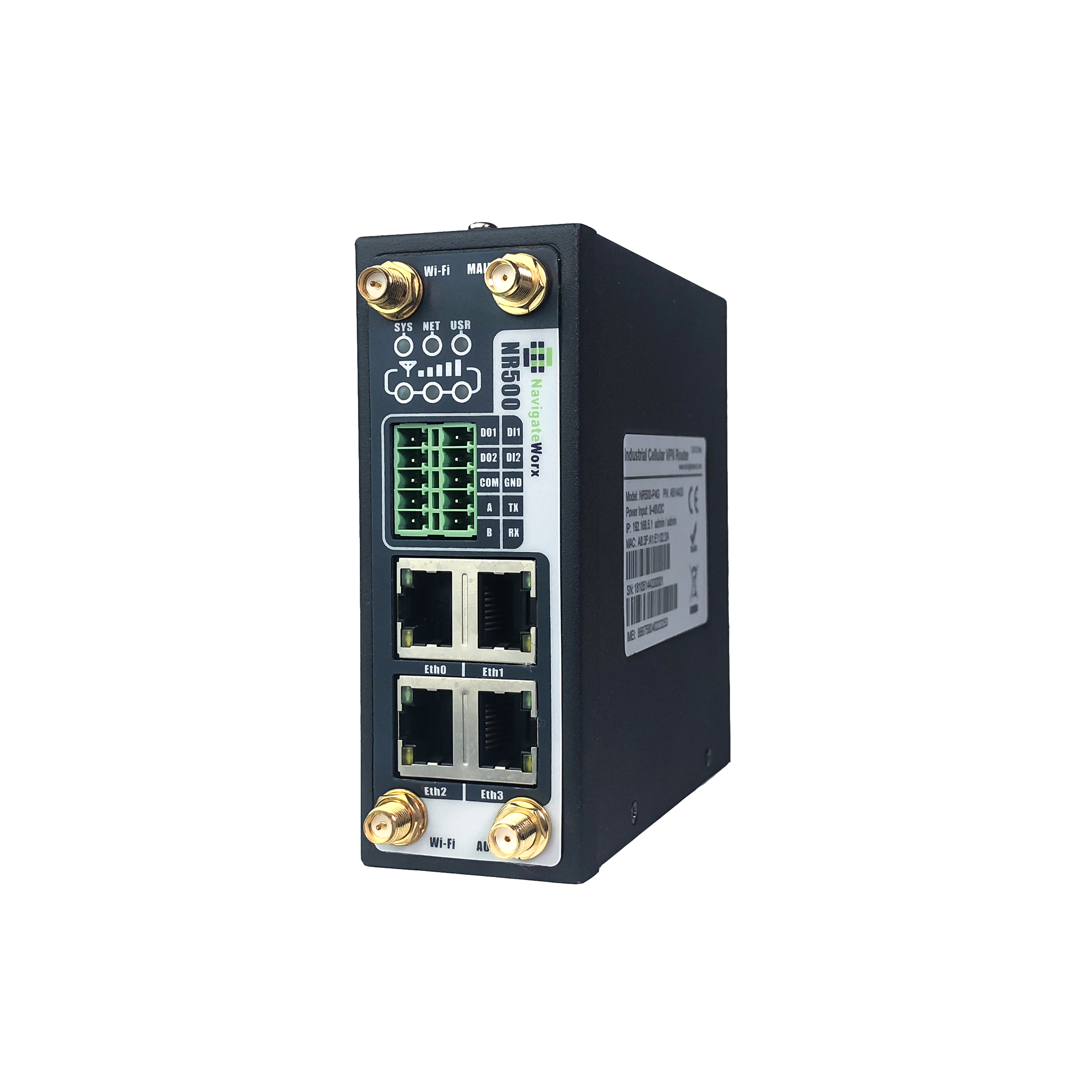

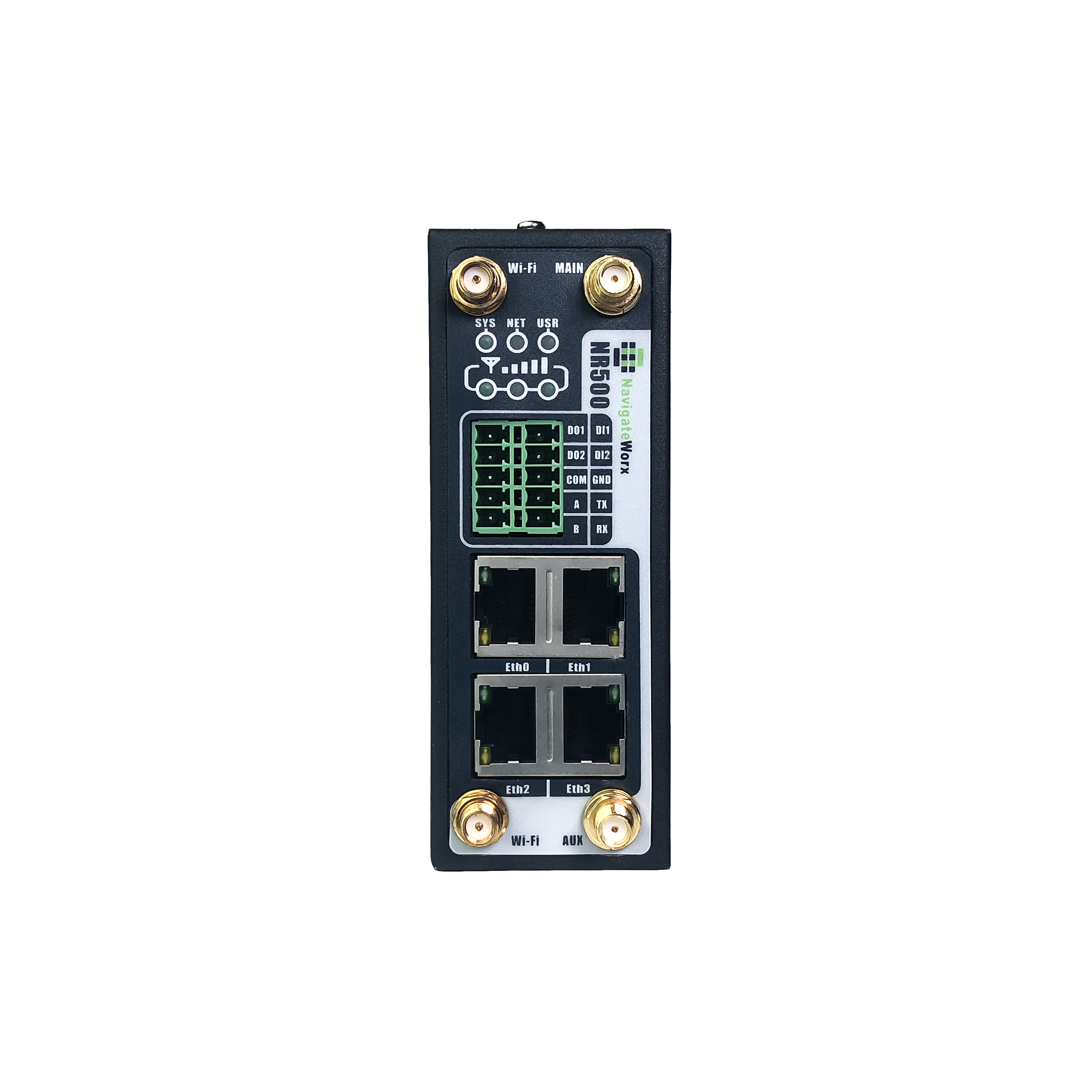

NR500 Pro

NR500 Pro

NR500 Pro is the most trustable reliable Industrial 3G / 4G VPN router that suitable for different kinds of IIoT applications.

Innovation
Strong R&D team
Professional Support
Industrial Design
Security Connection
Flexible Customize

Industrial Internet access

• Wireless Mobile Broadband 2G / 3G / 4G Connection
• Remote access to SCADA System for Industrial Automation
• Reduce high costs for on-site maintenance

Designed for industrial usage

• Power Input Range 9 to 48 VDC
• Industrial designed for harsh environment
• Compact metal casing for easy mounting

Secure and reliable remote connection

• Connection manager ensure seamless communication
• Support Multiple Encryption tunnels for data encryption
• Firewall prevents unsafe and unauthorized access

Easy to use and easy maintenance

• User-friendly web interface for human interaction
• Easy configuration for deployment
• Support Central Device Management Platform

CELLULAR
Frequency Bands	4G(LTE) AU&NZ: B1/B2/B3/B4/B5/B7/B28 B40 EMEA: B1/B3/B5/B7/B8/B20 B38/B40/B41 America: B2/B4/B12/B13 Japan: B1/B3/B8/B18/B19/B26 B41 China: B1/B3/B8 B34/B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8/B19 TD-SCDMA: B34/B39 GSM/EDGE: B2/B3/B5/B8 More Bands Demands please contact with us
SIM	2 x SIM slots 1.8V / 3V
SIM Failover	Auto-switch cases: weak signal data limited SMS limited no network network denied data connection fail
Auto APN List	Operator APN list
Mobile Quota Control	Set up customized data limits for both SIM cards
Number of Antennas	2 (MAIN + AUX)
Connector	SMA female

ETHERNET
Number of Ports	1 x WAN + 3 x LAN or 4 x LAN
Port Type	Auto 10/100 Mbps auto MDI/MDIX
Magnet Isolation Protection	1.5 KV

Wi-Fi (Optional)
Wireless Mode	IEEE 802.11b/g/n Access Point (AP) Client
Wireless Speed	2*2 MIMO 300 Mbps
Wireless Security	WPA WPA2 WEP 64/128 AES TKIP
Frequency Bands	2.412 - 2.484 GHz (2.4 GHz ISM band)
Antennas	2 x RP-SMA for Wi-Fi antenna connectors

SERIAL
Number of Ports	1 x RS-232 (3 PIN) + 1 x RS-485
Connector	Terminal block
ESD Protection	± 15 KV
Band Rate	300bps to 115200bps

DIGITAL INPUT & OUTPUT
Type	2 x DI + 2 x DO
Connector	Terminal block
Isolation	3KVDC or 2KVrms
Absolute maximum VDC	36VDC
Absolute maximum ADC	100 mA

NETWORK
Routing	Static routing RIP OSPF BGP
Network Protocols	TCP UDP IPv4 ICMP NTP DNS HTTP HTTPS ARP VRRP PPP PPPoE DHCP
Connection Manager	Ping Detection Timer Reboot ICMP for link detection
DHCP	Static and dynamic IP allocation
DDNS	Supported some service providers others can be configured manually
Network Backup	Cellular Wired and Wi-Fi WAN options each of which can be used as backup
Firewall	Flexible access control of TCP UDP ICMP packets MAC address filter

MONITORING & MANAGEMENT
Web GUI	HTTP/HTTPS firmware upgrade
Command Line Interface	SSHv2 and TELNET
3^rd party platform	Pending

POWER
Connector	3-pin 3.5 mm female socket with lock
Input Voltage Range	9 to 48 VDC
Power Consumption	Idle: 100 mA@12 V Data link: 400 mA (peak) @12 V

HARDWARE SPECIFICATION
Watchdog	Built-in watchdog
LEDs	SYS NET USR RSSI x 3
Reset Button	Reset/restore to factory default button
Ingress Protection	IP30
Housing & Weight	metal 300 g
Dimensions	106mm x 106mm x 40mm
Installations	DIN-rail mounting
Operating Temperature	-40 °C to 85 °C
Operating Humidity	5% to 95% non-condensing

APPROVAL
EMI		EN 55032:2012 Class B
EMS		IEC 61000-4-2 ESD: IEC 61000-4-3 RS: IEC 61000-4-4 EFT: IEC 61000-4-5 Surge: IEC 61000-4-6 CS:	Level 4 Level 3 Level 3 Level 3 Level 3
Vibration		EN50155

Model	Part Number	Description
NR500-P4G	A504433	4G LTE Dual SIMs 4 x Eth 1 x RS232 (3 PIN) 1 x RS485 2 x DI 2 x DO 9 - 48VDC
	A504733	4G LTE Dual SIMs 4 x Eth 1 x RS232 (3 PIN) 1 x RS485 2 x DI 2 x DO 9 - 48VDC aGPS
	A514433	4G LTE Dual SIMs 4 x Eth 1 x RS232 (3 PIN) 1 x RS485 2 x DI 2 x DO 9 - 48VDC 2.4GHz Wi-Fi
	A514733	4G LTE Dual SIMs 4 x Eth 1 x RS232 (3 PIN) 1 x RS485 2 x DI 2 x DO 9 - 48VDC 2.4GHz Wi-Fi aGPS

NR500-PRO_Datasheet_V1.4.0.pdf
